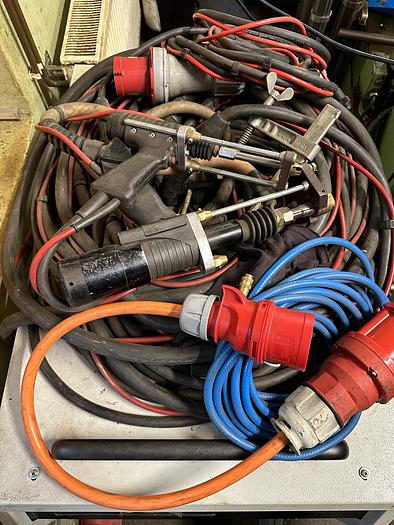

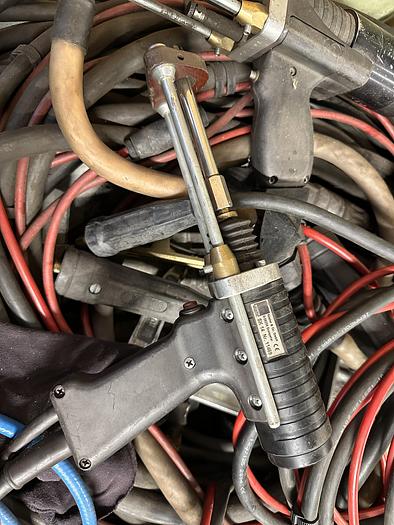

2011 KOCO ELOTOP 3010

Stud welding with ceramic ferrule, weld area Ø 6 - 25 mm

Short-cycle stud welding, weld area Ø 3 - 12 mm

Shielding gas stud welding, weld area Ø 3 - 16 mm

Weight 350 kg Weld area Ø 6 - 25 mm

Welding gun connections 1 pcs

Max. current 3500 A

Infinitely variable current setting range 300 - 2600 A

Infinitely variable time setting range 20 - 2000 ms

Shielding gas pre-flow time 100 - 2000 ms

Memory capacity 20 Parameter sets

Max. studs/min. for ... Ø 50 / 6 ; 6 / 25 mm

Mains connection: 50/60 Hz, three-phase current 230 / 400 V

Mains connector for 400 V 125 A

Mains cable 5 / 16 m/mm²

Slow-blow mains fuse 80 / 100 A

Mains input power at ...% DC 8 / 13 / 100 ; 187 / 145 / 52 kVA

Mains voltage tolerance - 15 / + 6 %

Protection class IP 23

Type of cooling F

Housing dimensions (L x W x H) 950 x 605 x 860 mm

Handle 1

Crane lugs 2

For more information please contact us.
