2024 DN Solutions PUMA 4005 XLM

Make: DN Solutions

Model: PUMA 4005 XLM

Year: 2024, brand new machine

Max. turning diameter: 560 mm

Max. turning length: 3068 mm

Bar working diameter: 116.5 mm

Spindle

Max. spindle speed 2.000 rpm

Spindle nose ASA A2-11

Diameter: 380 mm

Spindle through Bore: 132 mm

Max. spindle torque: 1611 Nm

Travel

Travel (X-axis): 352 (77+275) mm

Travel (Z-axis): 3180 mm

Rapid traverse (X-axis): 16 m/min

Rapid traverse (Z-axis): 20 m/min

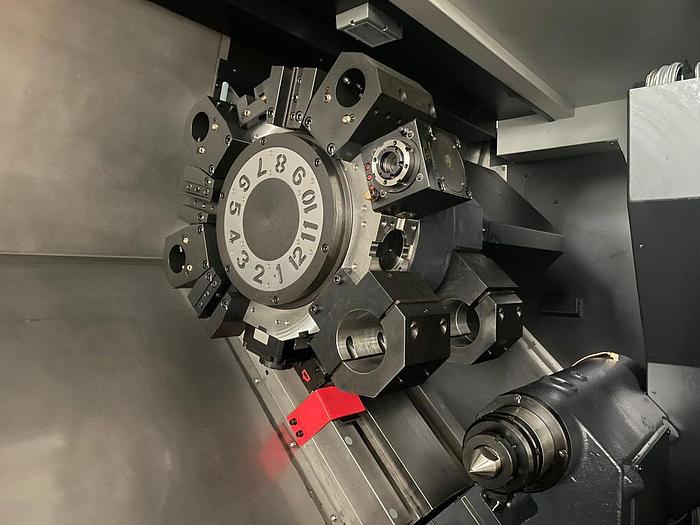

Turret

No. of tool stations: 12 st

OD tool size: 25×25 mm

Boring bar size: 60 mm

Max speed of rotary tool: 4.000 rpm

Turret Index time: 0,15 s

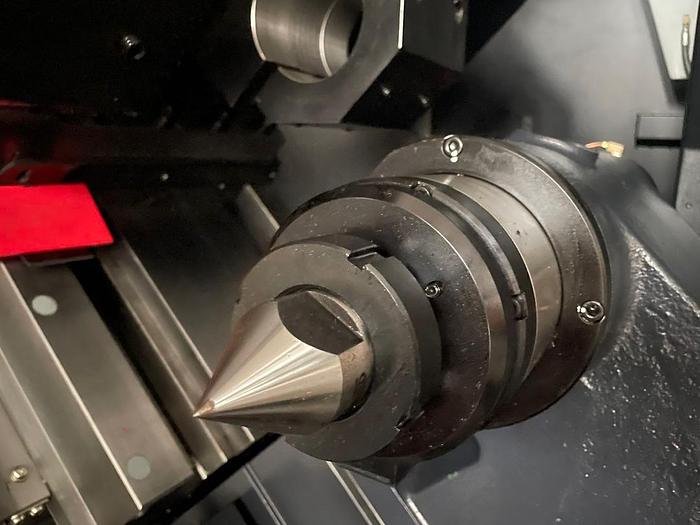

Tailstock

Tip diameter: 120 mm

Center taper MT#6 live center

Top trips: 120 mm

Maximum top thrust: 14,3 N

Control

Fanuc i Series

Machine dimensions

LxWxH: 7024x2276x2335 mm

Machine weight: 12.500 kg

Center saddle available upon request. Short delivery. For more information contact us.
